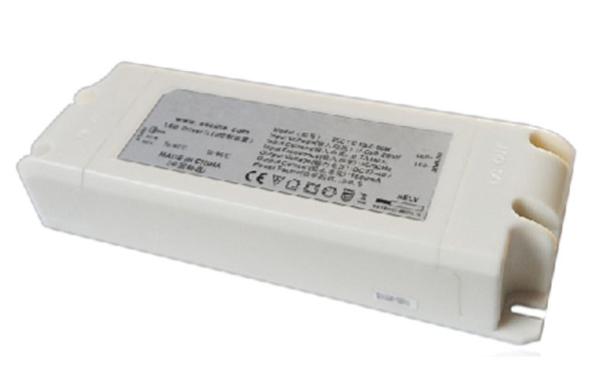

Dimmable Lighting Control Gear Overheating Protection , Metal Halide Lamp

Place of Origin : CHINA

Brand Name : GPT

Certification : CE,ROHS

Model Number : CCLDB001048

MOQ : 1000PCS

Packaging Details : STANDARD EXPORT PACKING

Delivery Time : 30DAYS

Payment Terms : T/T OR L/C

Supply Ability : 30,000 PCS PER MONTH

Contact Now


Dimmable Lighting Control Gear Overheating Protection , Metal Halide Lamp



Quick Detail:

Dimming Constant Current LED Driver CCLDB001048 36w,90-265v,700ma/1050ma

Description:



Dimming Constant Current LED Driver CCLDB001048 36w,90-265v,700ma/1050ma,50/60hz

Features:

  • Dimmable With Ordinary TRIAC Dimmer
  • (Leading Edge Or Trailing Edge Dimmer)
  • Constant Current Driver
  • Independent Design
  • Captured Terminal Screws
  • Safe No-Load Operation
  • Overload & Short Circuiting Protection
  • Overheating Protection
  • Simple Installation
  • SELV Equivalent
  • Protection ClassⅡ
  • Dimming Range 1...100%
  • Approved By En 61347-2-13, En 61347-1, En 55015, En 61547, En 61000- 3-2, En 61000-3-3


Specifications:

Max Output(W)

Output Coltage(V)

Output Current(Ma±3%)

Power Factor(Λ)

Ambient Temperature(℃)

Max Case Temperaturetc(℃)

36

30-47

700

≥0.9

(-20..+50)

80

36

16-35

1050

≥0.9

(-20..+50)

80


Competitive Advantage:

  • Safe No-Load Operation
  • Overload & Short Circuiting Protection
  • Overheating Protection
  • Simple Installation
  • Protection ClassⅡ
  • Dimming Range 1...100%


Size Diagram:155x53x29.5mm



Connection Diagram:

Applications:

This Product Is In The Category Of LED Drivers, Constant Current LED Drivers.
It Can Be Used In Following Applications:

  • Furniture Lighting
  • Store Lighting
  • Office Lighting
  • Control Gear
  • Home Lighting
  • Hotel Lighting
  • Supermarkets Lighting
  • Display Lighting


Tag:

Control Gear, Led Drivers, Constant Current Led Drivers
